MultiPlay Series
Aesthetic Design and Preparation of Perfect Sports Activity
MultiPlay Series Applications
Lozi’s proprietary technology creates Multipaly series
MultiPlay series is designed for sports grounds and recreation facilities. In addition to benefits, it can be expected more effects of saving energy, strong durability and extended product lifespan when replaced HID fixtures.
(Guarantee time is minimum 7 years, but customer who purchase Multicon24 Revolution can receive extend 8 to 15 years guarantee)
High quality of uniformity and illumaincne
The main key factor of Sports Lighting design is uniformity.
Depending on proposed space and quantity, Lozi always finds the optimal uniformity of illumination by photometric calculation.
MultiPlay series can produce a excellent uniformity of illuminance wherever needed for night time sports activity.
Flicker-free Lighting
MultiPlay series is suitable for UHD TV broadcasting with flicker –free technology; this is also possible to set event lighting up for audiences.
Flicker phenomenon : A sensation of continuous light caused by an intermittent light stimulus produced at a certain rate. According to a study, this causes fatigue, eye strain, and blurred vision, conventional headache

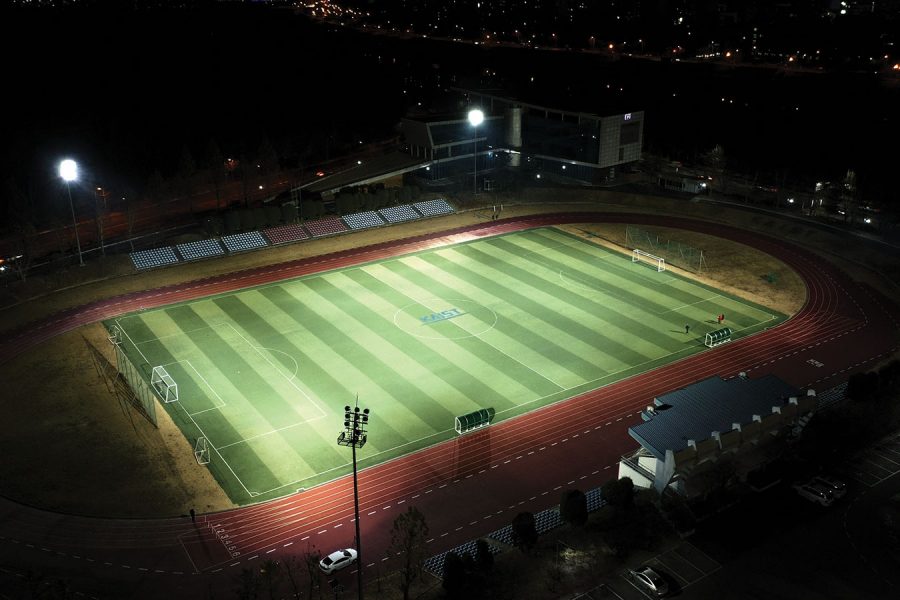

Prevention of Light Pollution
MultiPlay series minimizes spilled light over the outside field of play to protect environments and neighborhood who feel discomfort.
This also provide high color rendering index close to nature sunlight for best sports environment.

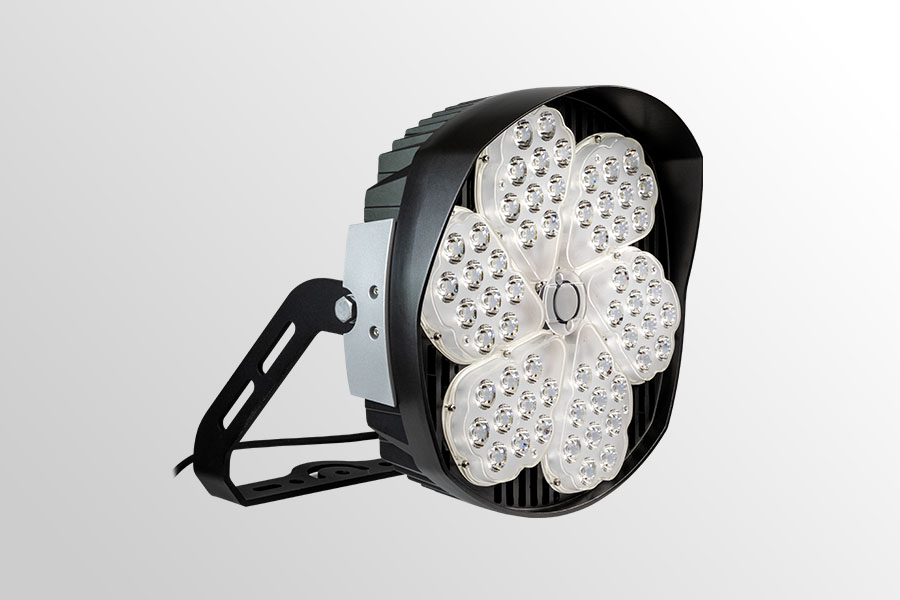

SMPS-Separated MultiPlay_R
The MultiPlay-R is an SMPS-separated model with the same exterior as the existing MultiPlay.
By separating the SMPS from the previously integrated MultiPlay Series, the weight has been reduced by over 12%, making transportation and replacement more convenient. It maintains the same light distribution, luminous efficacy, and specifications as the existing MultiPlay Series while featuring smart LED floodlighting with 0–100% dimming, data collection, and semi-IoT functionality.
MultiPlay 400 Specification
Power Consumption 400W
Input Voltage 220V
Lumens 50,000 lm
Efficiency 125 lm/W
Color Temp 5700K
CRI 80Ra
Beam Angle 15° / 20° / 30° / 45°
Operation Temp -22°F ~ 131°F
IP rates IP66
Weight 61.72 lb
Sizes 18.31 x 18.20 x 18.27 inch
MultiPlay 600 Specification
Power Consumption 600W
Input Voltage 220V
Lumens 75,000 lm
Efficiency 125 lm/W
Color Temp 5700K
CRI 80Ra
Beam Angle 15° / 20° / 30° / 45°
Operation Temp. -22°F ~ 131°F
IP rates IP66
Weight 61.72 lb
Sizes 18.31 x 18.20 x 18.27 inch
MultiPlay 800 Specification
Power Consumption 800W
Input Voltage 220V
Lumens 92,000 lm
Efficiency 115 lm/W
Color Temp 5700K
CRI 80Ra
Beam Angle 15° / 20° / 30° / 45°
Operation Temp. -22°F ~ 131°F
IP rates IP66
Weight 66.13 lb
Sizes 18.31 x 18.20 x 18.27 inch
MultiPlay 1000_1K2 Spec
Power Consumption 1000W
Input Voltage 220V
Lumens 115,000 lm
Efficiency 115 lm/W
Color Temp 5700K
CRI 80Ra
Beam Angle 15° / 20° / 30° / 45°
Operation Temp. -22°F ~ 131°F
IP rates IP66
Weight 66.13 lb
Sizes 18.31 x 18.20 x 18.27 inch
MultiPlay 1000_380 Spec
Power Consumption 1000W
Input Voltage 380V
Lumens 115,000 lm
Efficiency 115 lm/W
Color Temp 5700K
CRI 80Ra
Beam Angle 15° / 20° / 30° / 45°
Operation Temp -22°F ~ 131°F
IP rates IP66
Weight 66.13 lb
Sizes 18.31 x 18.20 x 18.27 inch
MultiPlay 1200 Specification
Power Consumption 1200W
Input Voltage 220V
Lumens 150,000 lm
Efficiency 125 lm/W
Color Temp 5700K
CRI 80Ra
Beam Angle 16° / 20° / 30° / 45°
Operation Temp. -22°F ~ 131°F
IP rates IP66
Weight 66.13 lb
Sizes 18.31 x 18.20 x 18.27 inch
MultiPlay 600_R Specification
Power Consumption 600W
Input Voltage 220V
Lumens 69,000 lm
Efficiency 115 lm/W
Color Temp 5700K
CRI 80Ra
Beam Angle 13° / 16° / 25° / 30° / 45°
Operation Temp. -22°F ~ 131°F
IP rates IP66
Weight 44.09 lb
Sizes 18.30 x 18.11 x 10.47 inch
MultiPlay 1100_R Specification
Power Consumption 1100W
Input Voltage 220V
Lumens 126,500lm
Efficiency 115 lm/W
Color Temp 5700K
CRI 80Ra
Beam Angle 20° / 30° / 40° / 50°
Operation Temp. -22°F ~ 131°F
IP rates IP66
Weight 44.09 lb
Sizes 18.30 x 18.11 x 10.47 inch
