Realtime Intelligent Power Control
MultiCon24
Wireless, Simple, Convenient

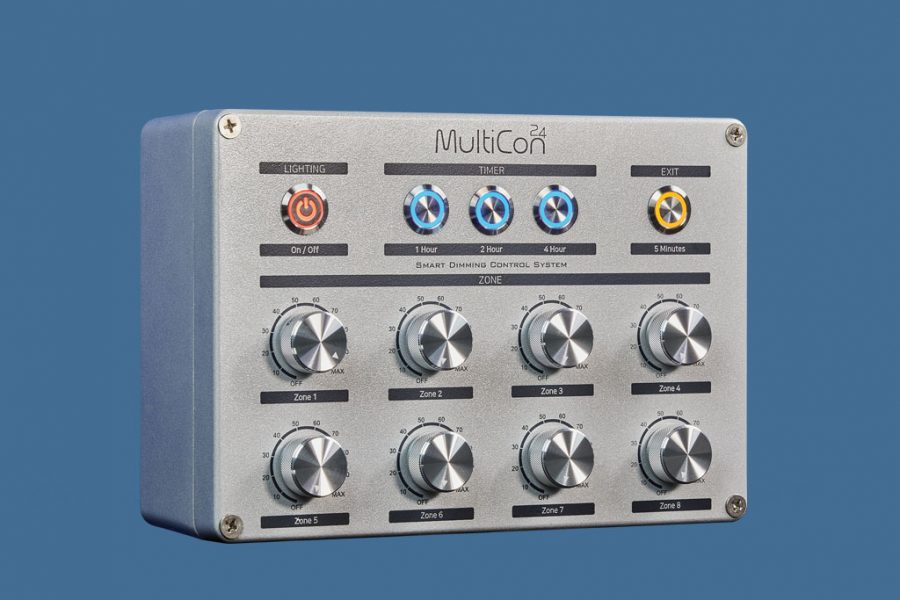

MultiCon24
Intelligent light control
MultiCon 24, controlling light Intelligently, is a device that controls real-time lights on/off and brightness of the light; it can control brightness 0% to 100%, dimming.
To control lights, administrators don’t have to turn off each of power supply if controlling the lights with MultiCon 24. therefore, It can control lights efficiently and also save enormous energy.
Zigbee, wireless communication
Zigbee, a standard technology that constructs communication using small and low-power digital radio, is core component of MultiCon 24.
MultiCon 24, a durable and intuitive designed control box, uses 128-bit security solutions to prevent the system from malfunction.
It has variety of functions but especially Timer function allows administrators to turn on/off the lights though they clear their seats.

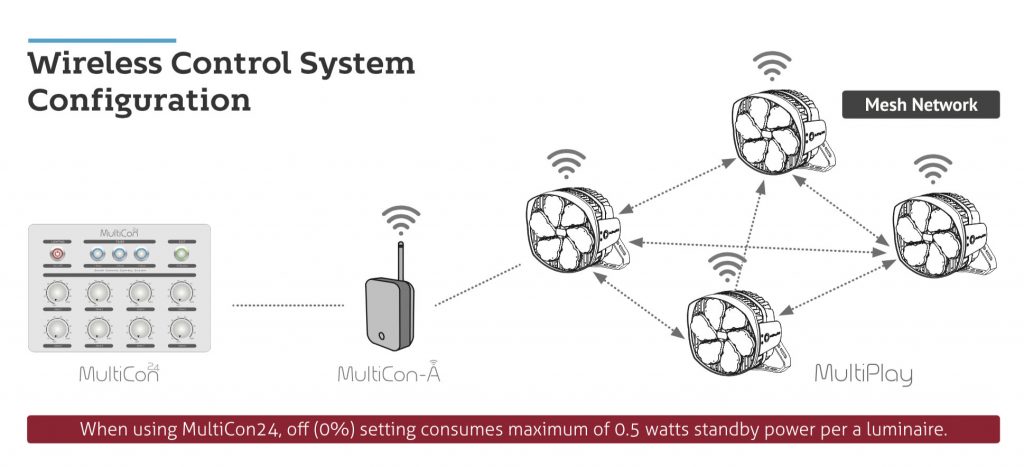

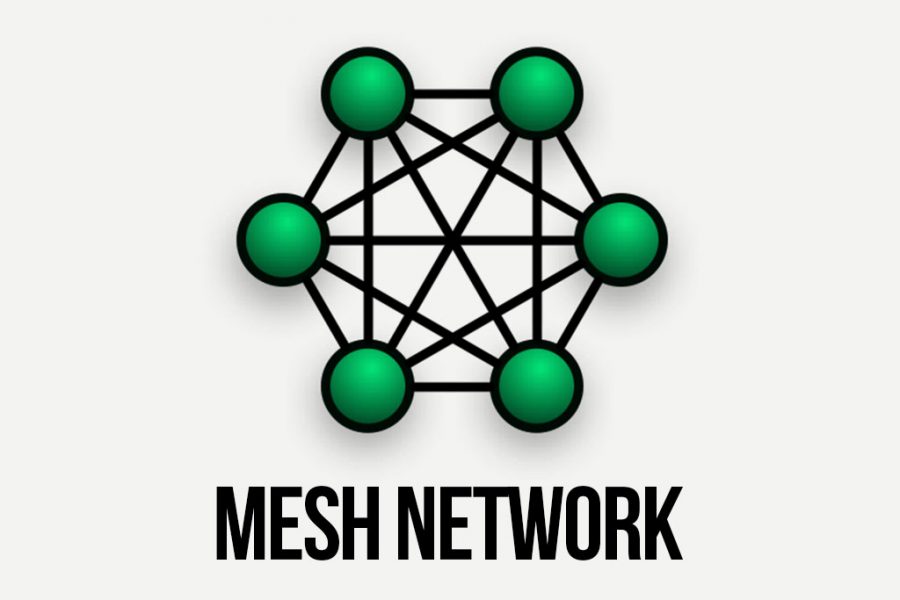

Mesh Network
MultiCon 24 is connected to Mesh Network to interact MultiPlayseries and MultiCrossseries.
It is a smart dimming control system used in stadiums installed the lights. It can register up to eight groups of lights for more convenient control lights.

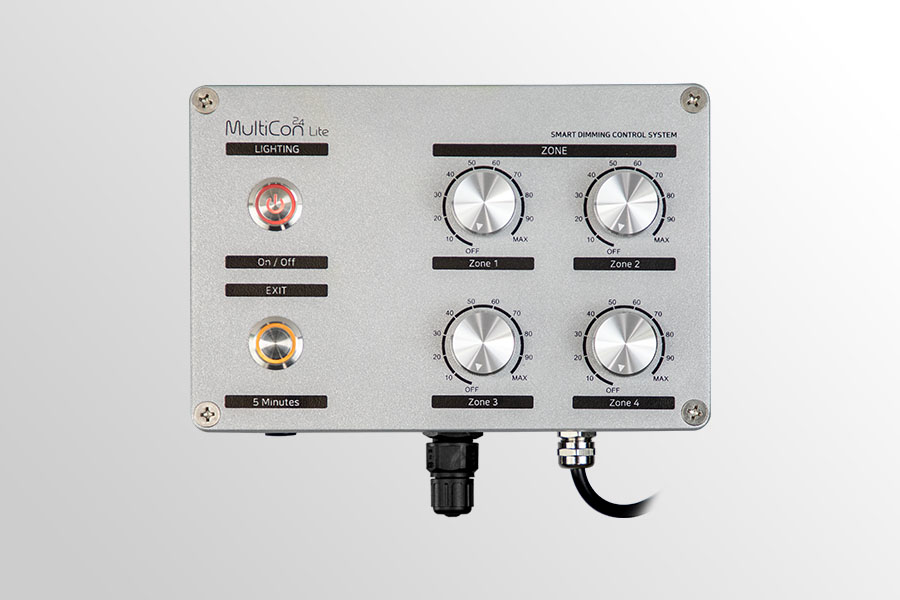

MultiCon24 Lite
The MultiCon24 Lite retains the core functionalities of the MultiCon24 while offering a more streamlined lighting control solution for various facilities. By excluding the 1-hour, 2-hour, and 4-hour timer button functions, it is optimized for efficient lighting management in smaller stadiums, indoor sports halls, and commercial spaces.
If you’re looking for a cost-effective yet intelligent lighting control solution, MultiCon24 Lite is the perfect choice.
On/Off
All lights immediately on(lately set brightness) or off(0%)
Timer
Function setting the time of use After pressing 1/2/4 hour button, all the lights turns off on itself
Exit
Function used when exiting all of lights turn off after 5 mins
Zone
Function controlling group dimming control up to 8 groups 0% to 100% brightness
MultiCon24 Specification
12V DC Power
Group Zone Dimming Dial (8 Group)
On/Off Push Button
Timer Button (1Hr, 2Hr, 4Hr)
Exit Button (5 Min Timer)
Die-Casting Aluminum
No-Waterproof
Zigbee Wireless Communication
MultiCon24 Lite Specification
12V DC Power
Group Zone Dimming Dial (4 Group)
On/Off Push Button
–
Exit Button (5 Min Timer)
Die-Casting Aluminum
No-Waterproof
Zigbee Wireless Communication
