Tennis / Baseball / Volleyball / Basketball / Futsal / Golf / Port / Airport / Railroad
MultiCross Series
Brightness without glare, “Cut Off”
MultiCross Series Applications

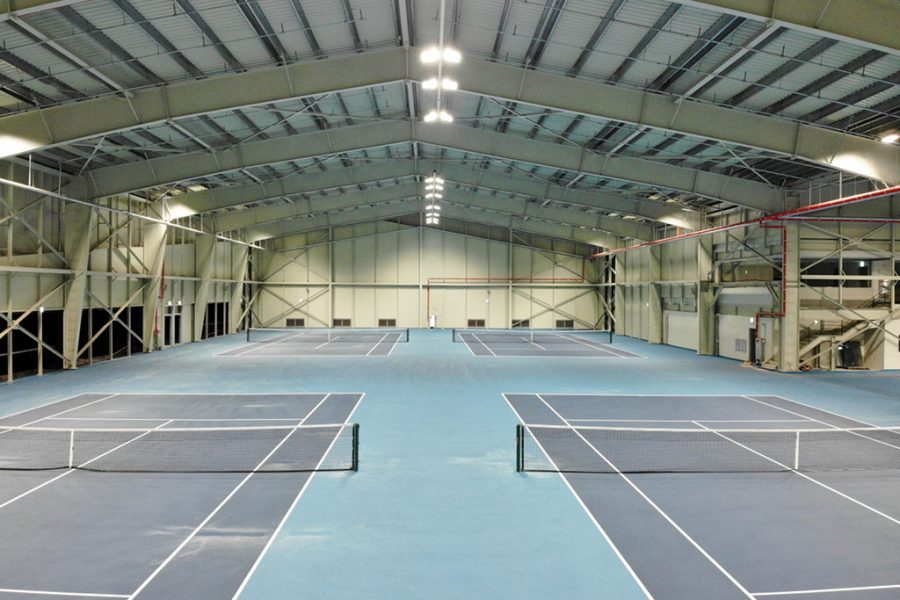

Sports Lighting for Recreation
“MultiCross Series” is developed for not only sports but recreation.
It’s SMPS is included in product to install conveniently. Semi Cut Off lights that apply remarkable cooling tech minimizes loss of light.
In the case of replacing HID with MultiCross Series, it can save energy, be more durable, and extend product lifespan.
High quality of uniformity and intensity of illumination
When MultiCross Series is installed with low profile pole, it shows more uniform, more bright lights.
MultiCross Series’s High efficiency reflecting plate is designed for energy saving.
It can reduce loss of light, keep contiguous environment from light pollution.

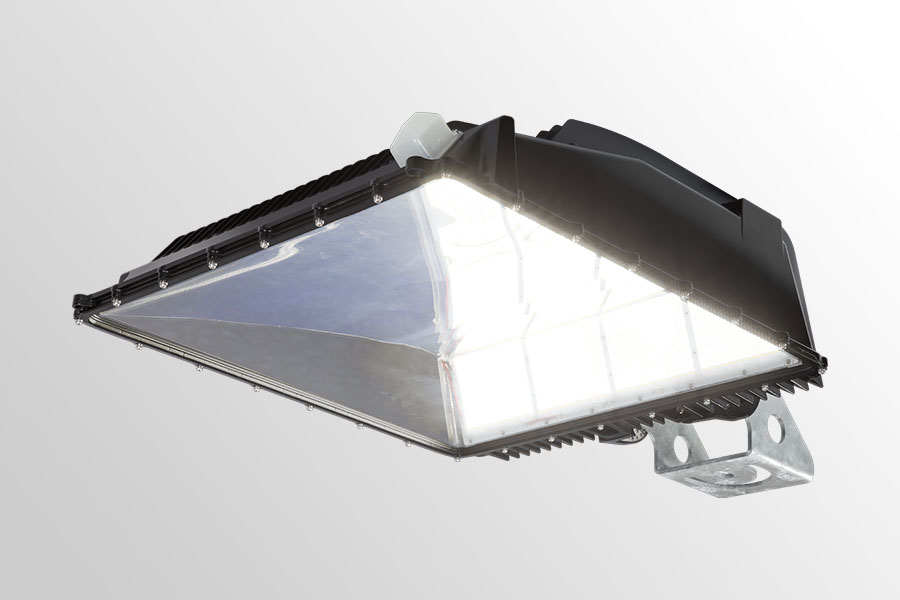

SMPS-Separated MultiCross_R
The MultiCross-R is an SMPS-separated model with the same exterior as the existing MultiPlay.
By separating the SMPS from the previously integrated MultiCross Series, the weight has been reduced by over 12%, making transportation and replacement more convenient. It maintains the same light distribution, luminous efficacy, and specifications as the existing MultiCross Series while featuring smart LED floodlighting with 0–100% dimming, data collection, and semi-IoT functionality.
MultiCross 200 Specification
Power Consumption 200W
Input Voltage 220V
Lumens 23,000 lm
Efficiency 115 lm/W
Color Temp 5700K
CRI 80Ra
Beam Angle Asymmetric Wide
Operation Temp -22°F ~ 131°F
IP rates IP66
Weight 19.84 lb
Sizes 14.05 x 21.69 x 6.29 inch
MultiCross 300 Specification
Power Consumption 300W
Input Voltage 220V
Lumens 34,500 lm
Efficiency 115 lm/W
Color Temp 5700K
CRI 80Ra
Beam Angle Asymmetric Wide
Operation Temp -22°F ~ 131°F
IP rates IP66
Weight 19.84 lb
Sizes 14.05 x 21.69 x 6.29 inch
MultiCross 400_e Specification
Power Consumption 400W
Input Voltage 220V
Lumens 46,000 lm
Efficiency 115 lm/W
Color Temp 5700K
CRI 80Ra
Beam Angle Asymmetric Wide
Operation Temp -22°F ~ 131°F
IP rates IP66
Weight 57.32 lb
Sizes 24.80 x 31.81 x 7.63 inch
MultiCross 600 Specification
Power Consumption 600W
Input Voltage 220V
Lumens 69,000 lm
Efficiency 115 lm/W
Color Temp 5700K
CRI 80Ra
Beam Angle Asymmetric Wide
Operation Temp -22°F ~ 131°F
IP rates IP66
Weight 57.32 lb
Sizes 24.80 x 31.81 x 7.63 inch
MultiCross 600 BC Spec
Power Consumption 600W
Input Voltage 220V
Lumens 69,000 lm
Efficiency 115 lm/W
Color Temp 5700K
CRI 80Ra
Beam Angle Asymmetric Wide
Operation Temp -22°F ~ 131°F
IP rates IP66
Weight 57.32 lb
Sizes 24.80 x 31.81 x 7.63 inch
MultiCross 800_G2 Spec
Power Consumption 800W
Input Voltage 220V
Lumens 92,000 lm
Efficiency 115 lm/W
Color Temp 5700K
CRI 80Ra
Beam Angle Asymmetric Wide
Operation Temp -22°F ~ 131°F
IP rates IP66
Weight 61.72 lb
Sizes 24.80 x 31.81 x 7.63 inch
MultiCross 800_G2_3 Spec
Power Consumption 800W
Input Voltage 220V
Lumens 92,000 lm
Efficiency 115 lm/W
Color Temp 3000K
CRI 80Ra
Beam Angle Asymmetric Wide
Operation Temp -22°F ~ 131°F
IP rates IP66
Weight 61.72 lb
Sizes 24.80 x 31.81 x 7.63 inch
MultiCross 800_G2_4 Spec
Power Consumption 800W
Input Voltage 220V
Lumens 92,000 lm
Efficiency 115 lm/W
Color Temp 4000K
CRI 80Ra
Beam Angle Asymmetric Wide
Operation Temp -22°F ~ 131°F
IP rates IP66
Weight 61.72 lb
Sizes 24.80 x 31.81 x 7.63 inch
MultiCross 800 FT Specification
Power Consumption 800W
Input Voltage 220V
Lumens 92,000 lm
Efficiency 115 lm/W
Color Temp 5700K
CRI 80Ra
Beam Angle Asymmetric Wide
Operation Temp -22°F ~ 131°F
IP rates IP66
Weight 57.32 lb
Sizes 24.80 x 31.81 x 7.63 inch
MultiCross600_R Specification
Power Consumption 600W
Input Voltage 220V
Lumens 69,000 lm
Efficiency 115 lm/W
Color Temp 5700K
CRI 80Ra
Beam Angle Asymmetric Wide
Operation Temp -22°F ~ 131°F
IP rates IP66
Weight 50.04 lb
Sizes 24.76 x 31.79 x 7.61 inch
